Arbitrary Function Generator (optional)

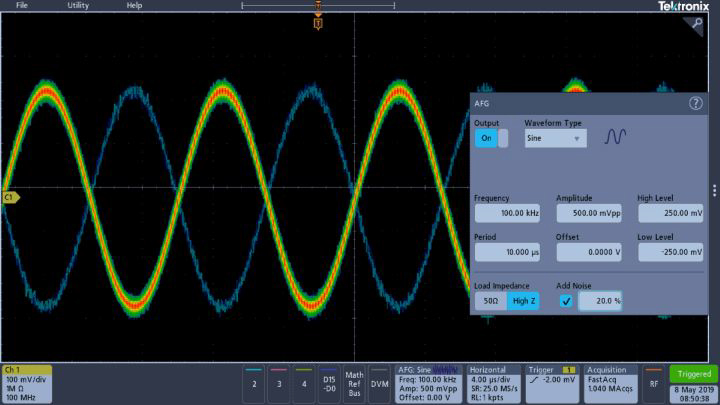

The 4 Series MSO contains an optional integrated arbitrary function generator (option 4-AFG), perfect for simulating sensor signals within a design or adding noise to signals to perform margin testing. The integrated function generator provides output of predefined waveforms up to 50 MHz for sine, square, pulse,  amp/triangle, DC, noise, sin(x)/x (Sinc), Gaussian, Lorentz, exponential rise/fall, Haversine and cardiac.

The arbitrary waveform generator provides 128 k points of record for storing waveforms from the analog input, a saved internal file location, a USB mass storage device, or from an external PC. Transfer waveform files
to your 4 Series MSO edit memory via USB or LAN or using a USB mass storage device to be output from the AFG in the oscilloscope.
