Power analysis (optional)

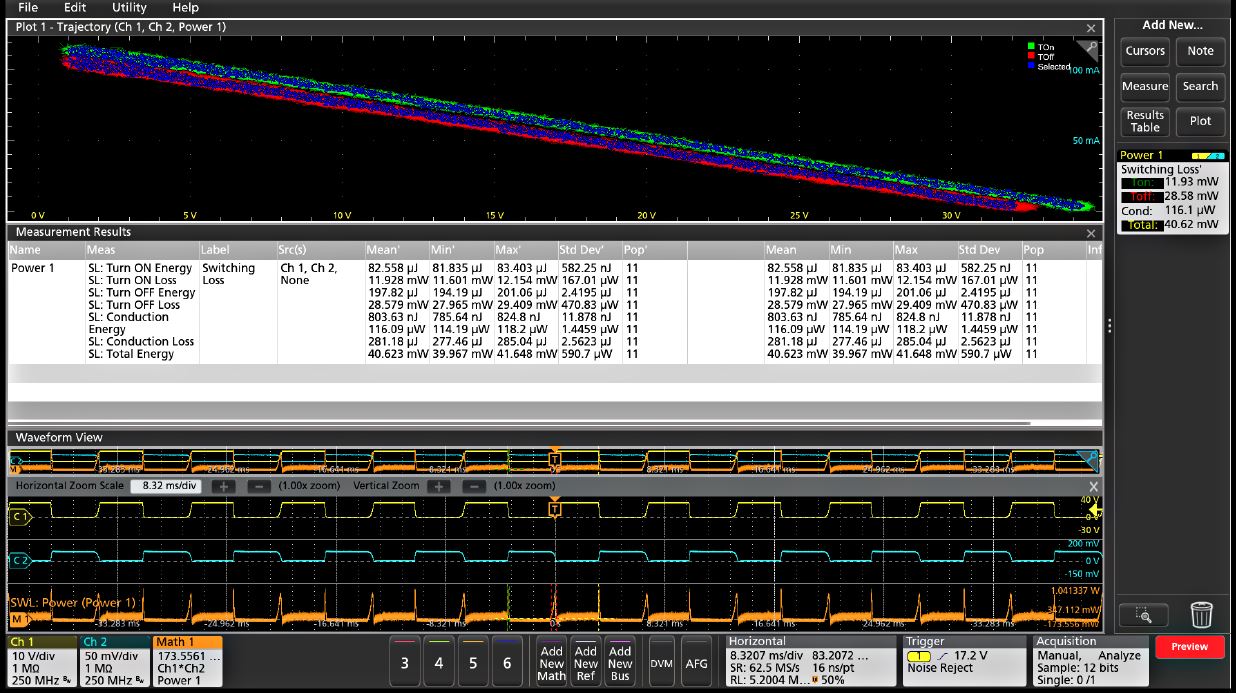

The 4 Series MSO has also integrated the optional 4-PWR-BAS/SUP4- PWR-BAS power analysis package into the oscilloscope's automatic measurement system to enable quick and repeatable analysis of power
quality, input capacitance, in-rush current, harmonics, switching loss, safe operating area (SOA), modulation, ripple, efficiency, amplitude and timing measurements, and slew rate (dv/dt and di/dt). Measurement automation optimizes the measurement quality and repeatability at the touch of a button, without the need for an external PC or complex software setup.
