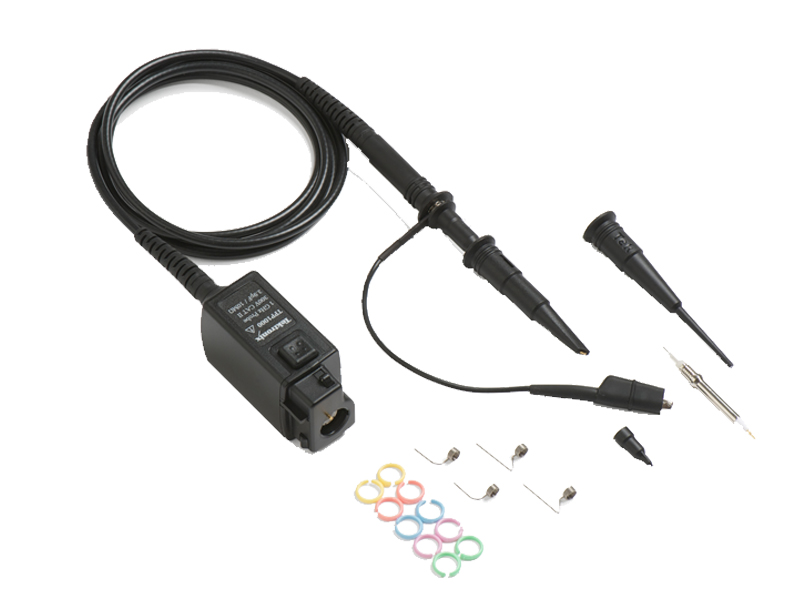

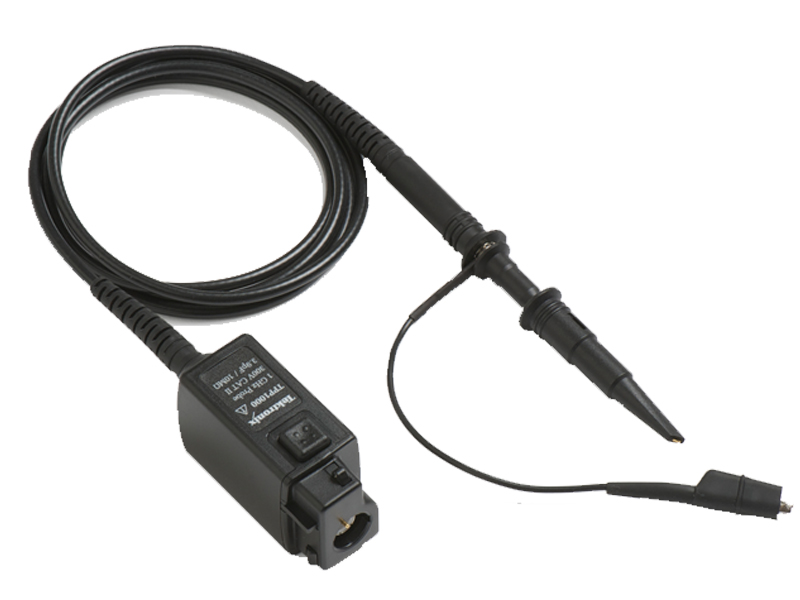

Tektronix TPP0250
Passiver Spannungs-Tastkopf
498.00 CHF (538.35 CHF inkl. MwSt.)
in den Warenkorb Offertliste

The TPP1000, TPP0500B, TPP0502 and TPP0250 models are high-bandwidth, general-purpose probes from Tektronix that offer breakthrough specifications previously unrealized in this product class. Designed for use with Tektronix MDO3000, MDO4000B, MSO/DPO4000B and MSO/DPO5000B Series oscilloscopes, these probes provide up to 1 GHz of analog bandwidth with less than 3.9 pF of capacitive loading.

Technische Daten

Bandbreite DC - 250 MHz
Spannung 300 V CAT II
Strom -
Interface TekVPI
Dämpfung 10x
Garantie 1 Jahr

Datenblätter

TPP1000-TPP0500B-TPP0502-TPP0250-Passive-Voltage-Probe-Datasheet.pdf

Zubehör

Tektronix 206-0649-xx

206064900 - Rigid Tip for TPP0500B
52.60 CHF
in den Warenkorb Offertliste

Tektronix 204-1226-xx

204122601 - Insulator sleeve for TPP0500B, TPP0250
32.00 CHF
in den Warenkorb Offertliste

Tektronix 131-8831-xx

131883100 - Compact probe tip chassis mount test jack
for TPP0250 and TPP0500B (3.8mm)
107.40 CHF
in den Warenkorb Offertliste

Tektronix 016-2034-xx

016203400 - Short Ground Spring 0.25 inch
26.30 CHF
in den Warenkorb Offertliste

Tektronix 016-2028-xx

016202800 - Long Ground Spring 0.75 inch
26.30 CHF
in den Warenkorb Offertliste

Tektronix 196-3521-xx

196352101 - 6 inch Alligator Ground Lead
26.30 CHF
in den Warenkorb Offertliste

Tektronix 013-0362-xx

13036201 - Hook tip (regular)
26.30 CHF
in den Warenkorb Offertliste

Tektronix 013-0363-xx

13036300 - Hook tip (micro)
26.30 CHF
in den Warenkorb Offertliste

Tektronix 013-0366-xx

13036600 - IC Cap (universal) 3.8 mm
32.90 CHF
in den Warenkorb Offertliste

Tektronix 016-0633-xx

016063300 - MARKER Color bands - set of 4 color-coded bands
26.30 CHF
in den Warenkorb Offertliste

Tektronix 196-3512-xx

196351200 - Alligator Ground 12 inch - 1 piece
26.30 CHF
in den Warenkorb Offertliste

Tektronix 196-3198-xx

196319801 - 6 inch clip-on ground lead with 0.025 inch
pin receptacle – 1 piece
27.40 CHF
in den Warenkorb Offertliste

Tektronix 206-0569-xx

206056900 - Microcircuit test tip - 1 piece
16.00 CHF
in den Warenkorb Offertliste

Tektronix 016-2016-xx

016201600 - PCB to probe tip adapter 3.8mm - pack of 10
544.00 CHF
in den Warenkorb Offertliste

Tektronix 003-1433-xx

003143302 - Tweaker tool
18.30 CHF
in den Warenkorb Offertliste

Tektronix 013-0367-xx

13036700 - BNC to probe tip adapter
78.90 CHF
in den Warenkorb Offertliste

Tektronix 020-3045-xx

020304500 - Wire Spool 32 AWG
78.90 CHF
in den Warenkorb Offertliste
1 - 17 from 17
