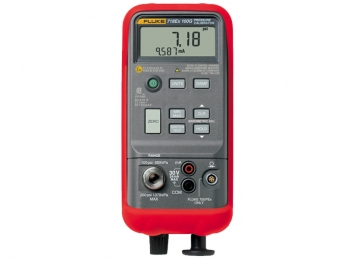

Product overview: Fluke 718Ex Intrinsically Safe Pressure Calibrator

Pump Up the Pressure

The Fluke 718Ex Intrinsically Safe Pressure Calibrator is a powerful intrinsically safe, self contained pressure calibrator for usage in explosion endangered areas.

Key features

• ATEX II 1G Ex ia IIC T4 Compliant.
• Built-in pressure / vacuum hand pump, with fine adjust vernier and bleed valve.
• 30, 100, and 300 psi ranges (2, 7, and 20 bar)
• Pressure measurement to 0.05% of full span, using an internal pressure sensor.
• Pressure measurement to 200 bar using any of eight intrinsically safe Fluke 700PEx Pressure Modules.
• Wide range of selectable measurement units for pressure.
• Current measurement with 0.02% accuracy and 0.001 mA resolution.
• Pressure switch test function.
• Min-Max Hold functions.
• Compact size and weight.
• Simple, push-button user interface.
• Rugged and reliable, ideal for field use.
