Versatile meters for field service or bench repair

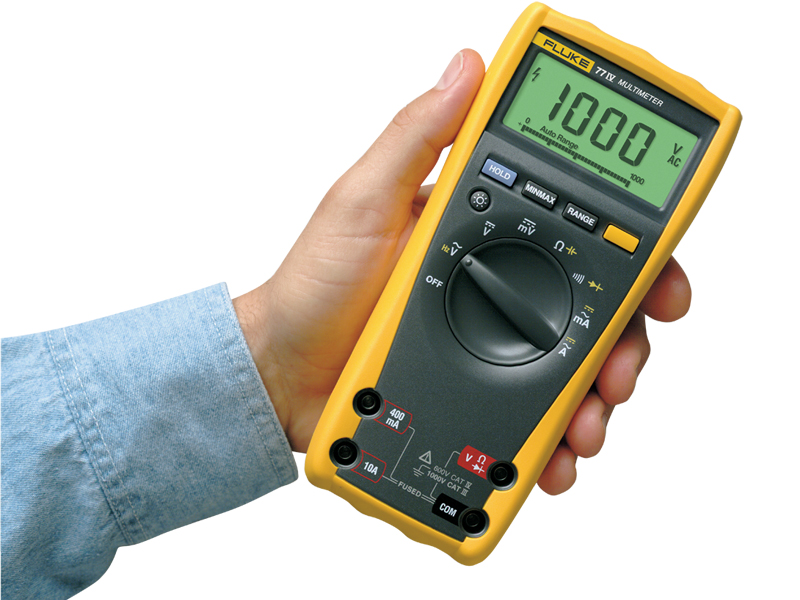

The Fluke 77 IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use for field service or bench repair.
Other useful features
- Large display
- Backlight for work in dim areas
- Min / Max to record signal fluctuations
- Ergonomic overmolded housing with integrated probe holders
- Free your hands with the optional TPAK magnetic hanger
- Auto and Manual ranging
- Meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards
Applications
For Technicians that need basic electrical testing. General purpose
Technical Data
| Application | General Purpose |
| Voltage AC/DC | 1000 V |
| Current AC/DC | 10A |
| Resistance | 50 M |
| Capacitance | 10 mF |
| Frequency | 100 kHz |
| Temperature | -200 °C to 1090 °C |
| True RMS readings | - |
| Wide bandwidth | - |
| Counts (Digits) | 6000 |
| Backlight | yes |
| AutoVolt: AC/DC | no |
| LoZ: low input impedance | no |
| Safety | CAT IV 600 V, CAT III 1000 V |
| Dimensions | 185 x 89 x 37 mm |
| Warranty | Lifetime Warranty* |
