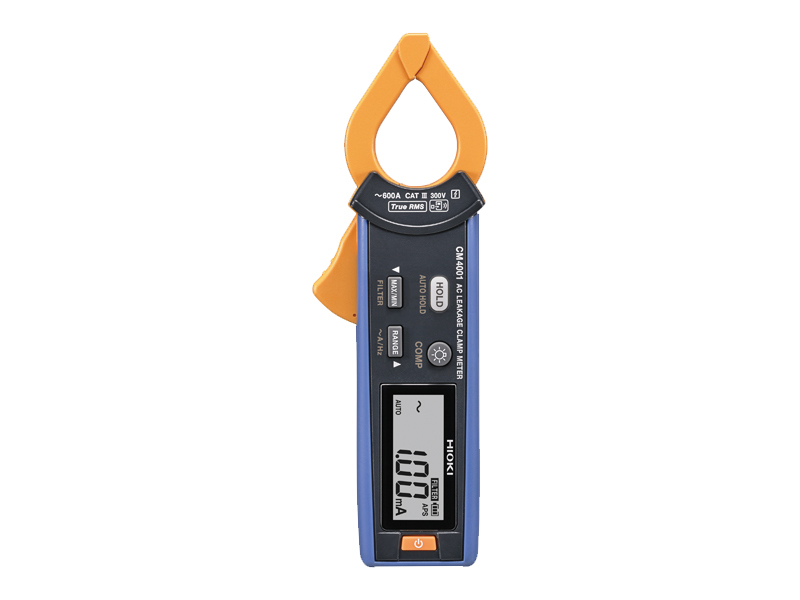

HIOKI CM4001
Leakage Current Clamp Meter 0.60 mA - 600 A 40 Hz to 1 kHz, 10 μA resolution
Delivery time: approx. 10-25 working days
458.00 CHF
(495.10 CHF incl. tax)
Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Use the CM4001 to easily clamp within crowded cables in order to reduce work time and improve safety. With guaranteed accuracy from 0.60 mA to 600.0 A, the CM4001 provides a one-stop solution for a variety of applications. A built-in comparator function also helps you find issues much faster.
Key Features
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Slim jaws let you work with ease
- Measure everything from leakage to load
- Identify intermittent GFCI and RCD trips to prevent unplanned equipment downtime by testing for earth leakage current
- Find issues faster with comparator function
Technical Data
| Application | Leakage |
| Jaw opening | 24 mm |
| Current range ac rms | 60 mA - 600 A |
| Accuracy ac current | 1.5% +/- 5 Digits |
| AC Response | True-rms |
| Current range dc | - |
| Accuracy dc current | - |
| Voltage range ac | - |
| Accuracy ac voltage | - |
| Voltage range dc | - |
| Accuracy dc voltage | - |
| Resistance range | - |
| Frequency measurement range | 40 Hz - 1 kHz |
| Auto off | yes |
| Safety | |
| Dimensions | 37 x 160 x 27 mm |
| Warranty | 3 years |
Data sheets
Accessories
HIOKI Z3210
1 - 1 from 1
