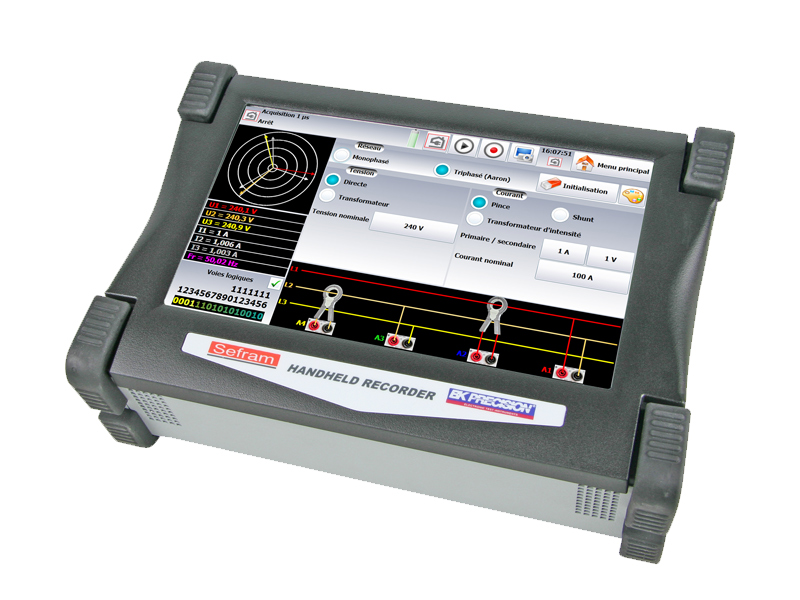

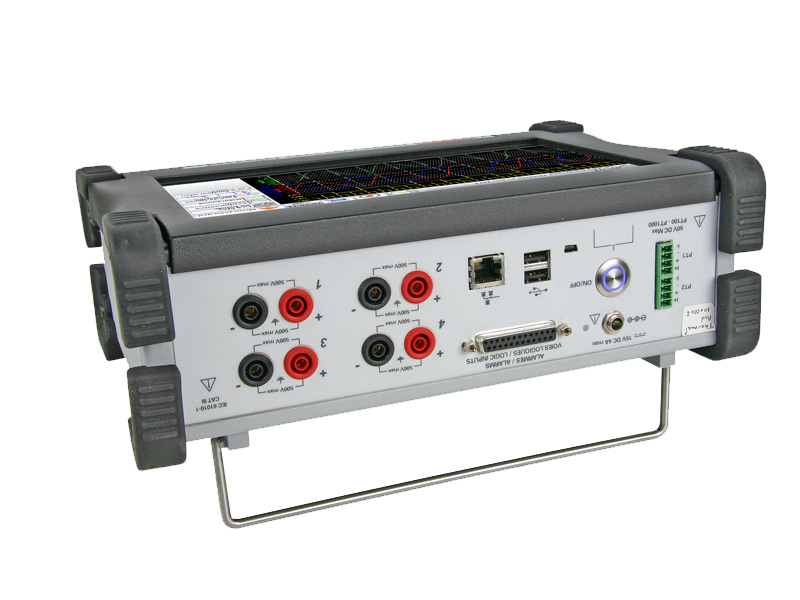

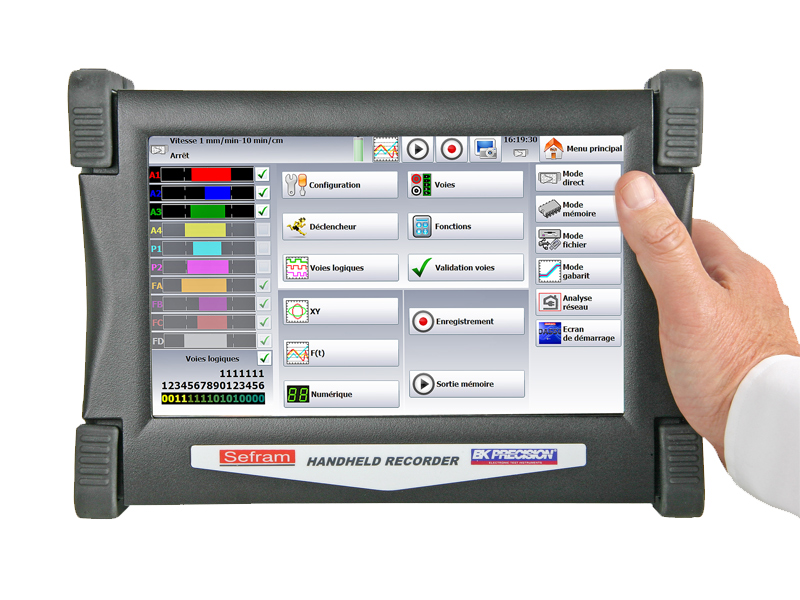

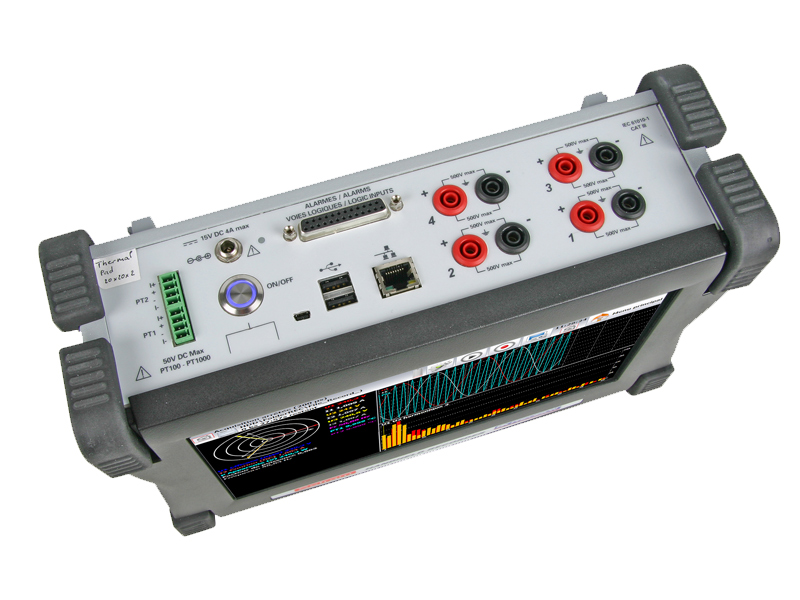

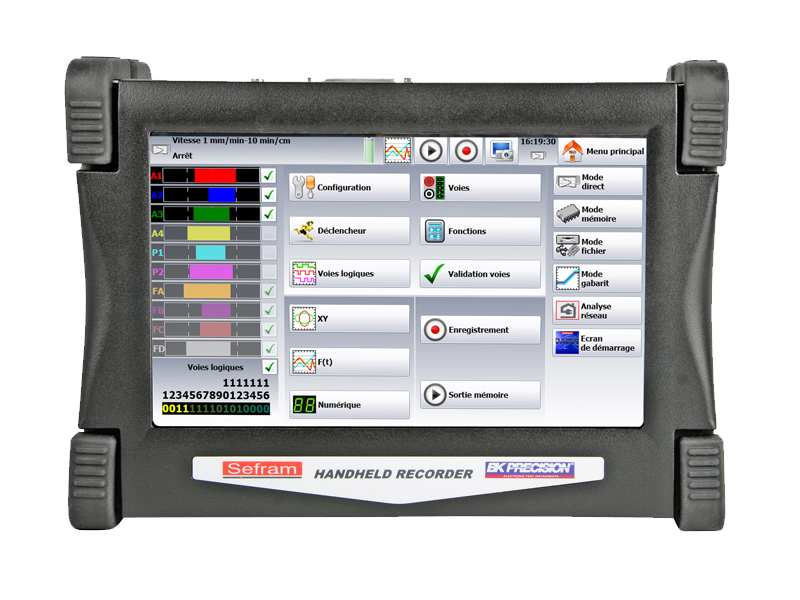

The Data Acquisition Solution DAS50 is part of the family of standalone, portable, battery operated instruments dedicated to high-speed recording. With 4 isolated channels, 16 logical inputs, 2 Pt100/Pt1000 inputs (in option), more than 9 hours autonomy, a 32GB memory, the DAS50 is the ideal tool for R&D, diagnostic and maintenance. With a special function of Power Analysis, you can record all your parameters on a Single-Phase and Three-Phase network. The remote control and the download of memorized data is very convenient using one of the interfaces provided: Ethernet, USB, WiFi (option). To view and manage your data, we propose several license-free software that can be downloaded from our website and that will match your needs. Available with printer option.

• 4 analogue channels
• Universal input (1mV to 425V RMS)
• DC, AC+DC RMS voltage measurement
• Frequency, Thermocouple

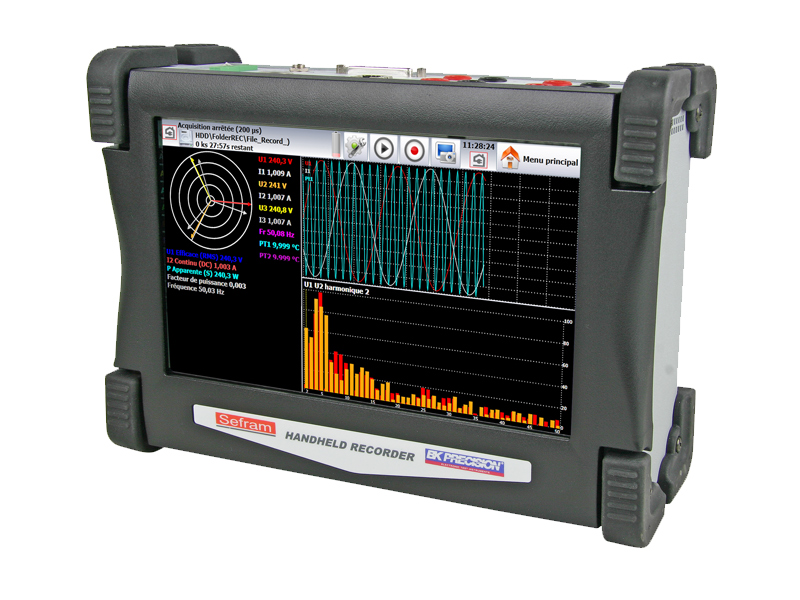

• Power analysis function
• 16 logical channels
• 14-bit resolution
• 10" TFT LCD screen
• 1 Mega sample/s sampling rate
• 100 kHz bandwidth
• 32 GB internal hard disk
• 32 Mword memory
• Interface : USB andEthernet
• Lithium-ion battery: 10h continuous operation
• High safety level for industrial application: CEI 1010 CAT III 600V
• Optional Printer : 110 mm paper width (factory option)
