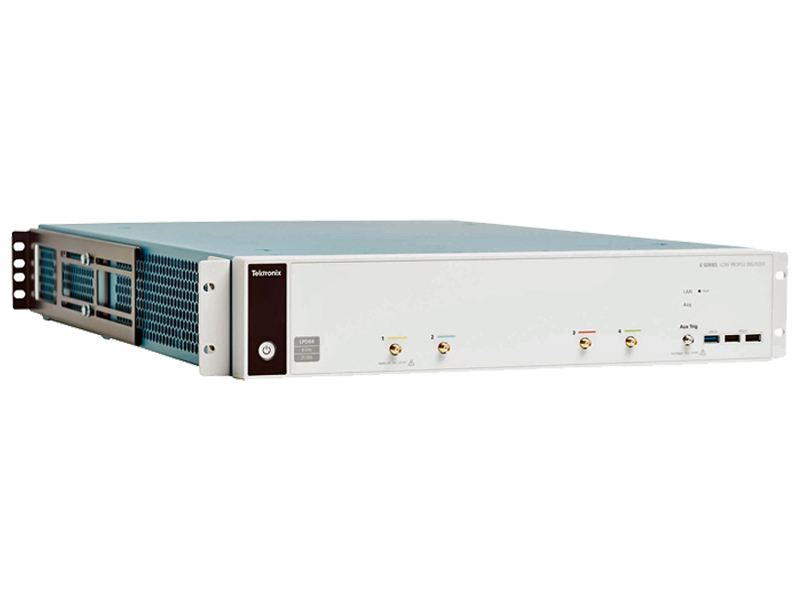

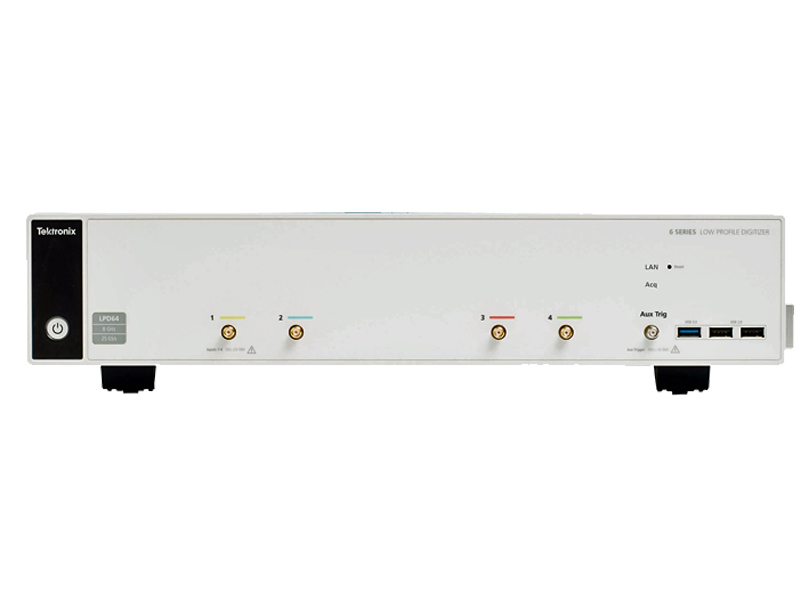

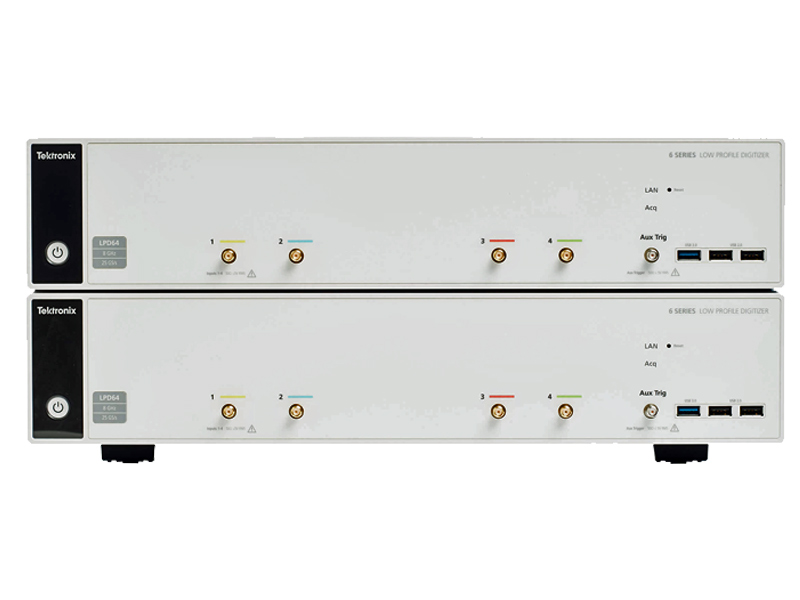

Tektronix LPD64
Oscilloscope without Display - 12bit ADC
4 Channels - up to 8 GHz - 25 GS/s
0.00 CHF (0.00 CHF incl. tax)
In cart On offer list

Technical Data

Bandwidth 1 GHz - 8 GHz
Channels 4
Memory 125 - 250 M points
Samplingrate 25GS/s (2.5TS/s interpolated)
Acquisitionrate >500'000 wfms/s
Protocol Analyzer I2C, SPI, RS-232/422/485/UART, USB 2.0, Ethernet, Audio, CAN, LIN, SENT und FlexRay
Logic Analyzer -
Spectrum AnalyzerFFT & Spectrum View
Function Generator50 MHz (optional)
Warranty 3 years

Data sheets

LPD64 Datasheet EN.pdf

Accessories

Tektronix LPD64 6-BW-1000

1 GHz Bandwidth for LPD64
38'500.00 CHF
In cart On offer list

Tektronix LPD64 6-BW-2500

2.5 GHz Bandwidth for LPD64
Price on request
On offer list

Tektronix LPD64 6-BW-4000

4 GHz Bandwidth for LPD64
Price on request
On offer list

Tektronix LPD64 6-BW-6000

6 GHz Bandwidth for LPD64
Price on request
On offer list

Tektronix LPD64 R5

5 Years Warranty Extension (includes product warranty period)
Price on request
On offer list

Tektronix LPD64 C3

Calibration service 3 years. Coverage includes the
initial calibration plus 2 years calibration coverage
Price on request
On offer list

Tektronix LPD64 C5

Calibration service 5 years. Coverage includes the
initial calibration plus 4 years calibration coverage
Price on request
On offer list

Tektronix LPD64 G3

Three year Gold Plan, includes expedited repair, including
ESD and EOS and loan unit during the repair time.
Price on request
On offer list

Tektronix LPD64 G5

Five year Gold Plan, includes expedited repair, including
ESD and EOS and loan unit during the repair time.
Price on request
On offer list

Tektronix 6-AFG

50MHz Arbitrary Function Generator for MSO6 Oscilloscopes
Price on request
On offer list

Tektronix 6-DJA

Advanced Jitter and Eye Analysis Option for MSO6 Oscilloscopes
Price on request
On offer list

Tektronix 6-RL-1

Extend Record Length to 125M/ch for MSO6 Oscilloscopes
Price on request
On offer list

Tektronix 6-RL-2

Extend Record Length to 250M/ch for MSO6 Oscilloscopes
Price on request
On offer list

Tektronix 6-SV-RFVT

Spectrum View RF versus Time analysis
Price on request
On offer list

Tektronix 6-SV-BW-1

Increase Spectrum View Capture Bandwidth to 2 GHz
Price on request
On offer list

Tektronix 6-SRAUDIO

Audio Serial Triggering and Analysis
Module (I2S, LJ, RJ, TDM)
Price on request
On offer list

Tektronix 6-SRAUTO

Automotive Serial Triggering and Analysis
Module (CAN, CAN-FD, LIN, FlexRay)
Price on request
On offer list

Tektronix 6-SRAUTOSEN

Automotive Sensor Serial Triggering and Analysis
Module (SENT)
Price on request
On offer list

Tektronix 6-SRCOMP

Serial Triggering and Analysis Module
for RS-232/422/485/UART
Price on request
On offer list

Tektronix 6-SREMBD

Embedded Serial Triggering and Analysis Module (SPI, I2C)
Price on request
On offer list
1 - 20 from 50
