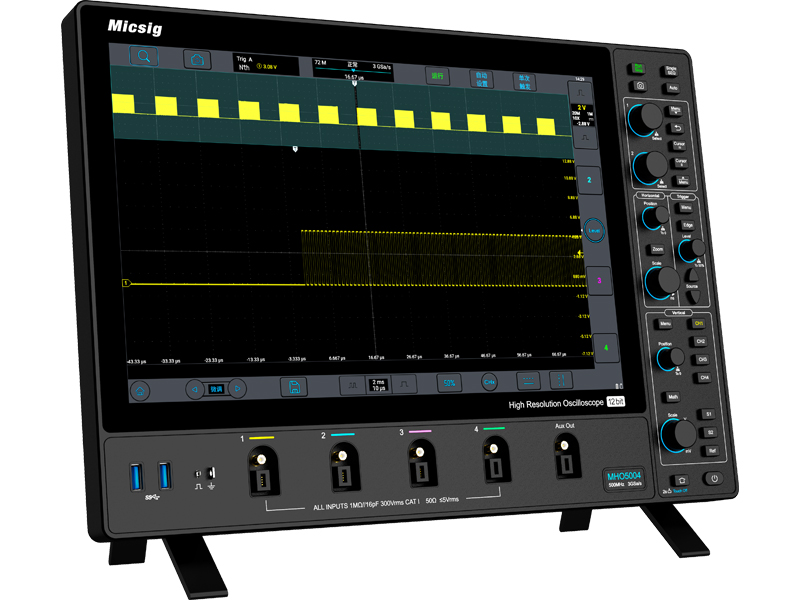

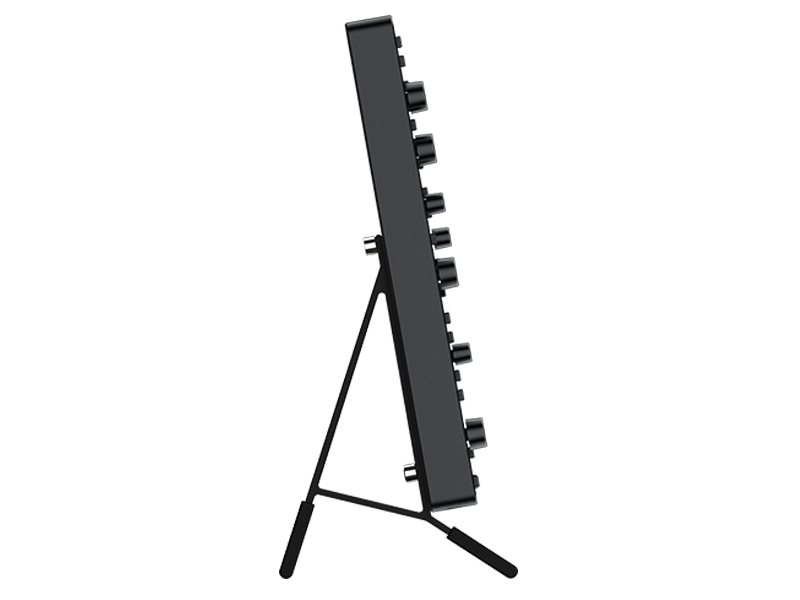

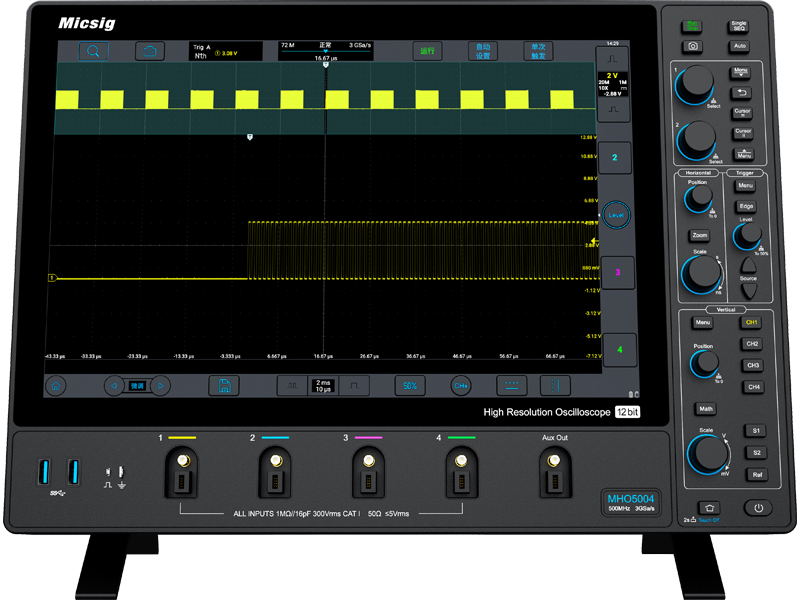

MHO High Resolution Oscilloscope 3 Series has 500MHz bandwidth, 3GSa/s sampling rate, 4 analog channels, 360Mpts memory depth and 12 bits vertical resolution; 3.58cm ultra-thin body support wall /arm mounting; 14-inch integrated touch screen with resolution of 1920 x 1200 brings unmatched waveform display.

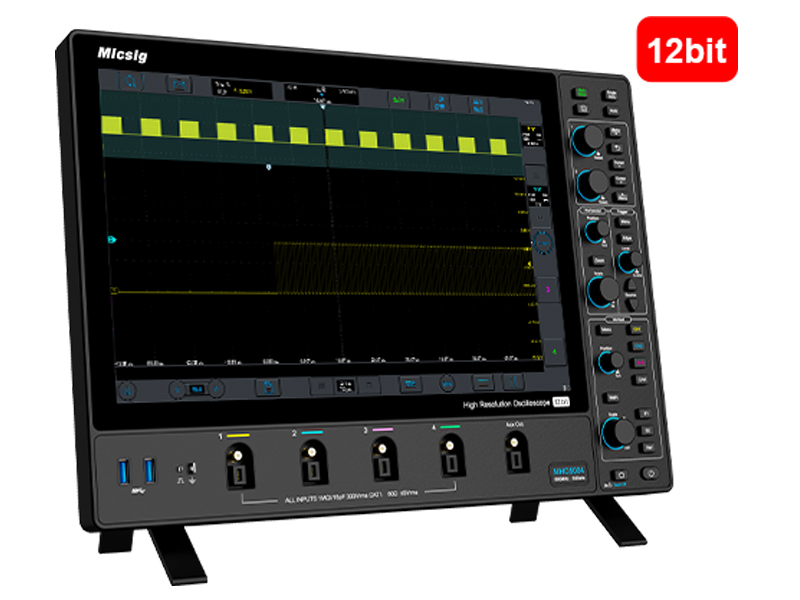

12-bit Vertical Resolution
MHO 3 series has 12-bit high-resolution ADC with a quantization level of up to 4096, which is 16 times that of traditional 8-bit ADC, helping users to observe waveform details more comprehensively and clearly.
Most friendly UI
Equipped with instrument-dedicated SigTestUI™ operating system, and accumulation of 10 years of UI design experience, the MHO 3 series evolved to simplify all user interfaces, newer engineers can quickly learn to use in 5 minutes.
Low noise floor
The noise of MHO 3 series is less than 80μVrms under 500MHz full bandwidth, allow engineers accurately capture weak but important signals during daily circuit debugging.
Technical Data
| Bandwidth | 500 MHz |
| Channels | 4 |
| Memory | 360M points |
| Samplingrate | 3 GS/s |
| Acquisitionrate | 230'000wfms/s |
| Display Screen | 14" TFT LED 1920x1200 |
| Math Operation | +/-/*/:/FFT |
| Protocol Analyzer | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B |
| I/O Port | USB 3.0 Host, USB type-C, LAN, HDMI, Trigger out |
| Battery | - |
| Accessories Supplied | Swiss Power Supply, 4 Probes, Serial decode for RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B, 3 years Linktronix warranty |
