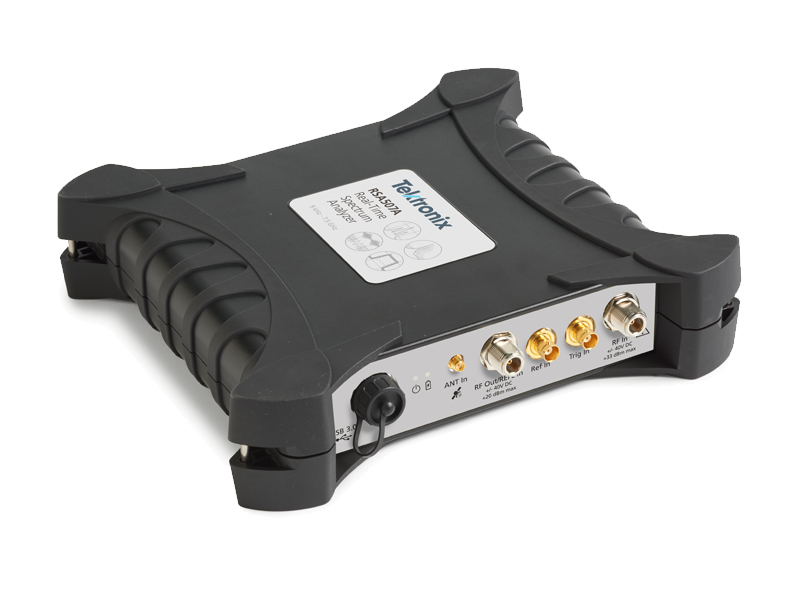

Tektronix RSA507A
USB Real Time Spectrum Analyzer
9kHz–7.5GHz 40MHz Real Time Bandwidth
18'800.00 CHF (20'322.80 CHF incl. tax)
In cart On offer list

Fast, light, and all-in-one field tool for spectrum analysis

Fast and light, this is the all-in-one field tool for spectrum analysis. Ideal for interference hunting and network management applications, this RSA’s rugged, road ready exterior packs tremendous performance at an unbelievable price:

  • Superb performance: 9 kHz up to 7.5 GHz, 40 MHz bandwidth, and an optional tracking generator
  • Quickly discover co-channel interference and transients with DPX, direction finding, GPS mapping
  • Characterize offending signals and geo-locate their source
  • See signal compliance at a glance using industry’s best open signal database
  • Complete cable & antenna testing easily with DTF, VSWR



Technical Data

Frequency Range 9 kHz - 7.5 GHz
Real-Time Bandwidth 40 MHz
Minimum Event Duration for 100% POI 15 us
Weight2.54 kg
Warranty 3 Years

Data sheets

Datasheet RSA500A.pdf Detecting Drones Using a RTSA App-Note 37W615760.pdf Interference_Hunting App Note.pdf RSA500A-Datasheet.pdf

Accessories

Tektronix RSA507A 04

Tracking Generator, 10 MHz – 7.5 GHz
3'931.00 CHF
In cart On offer list

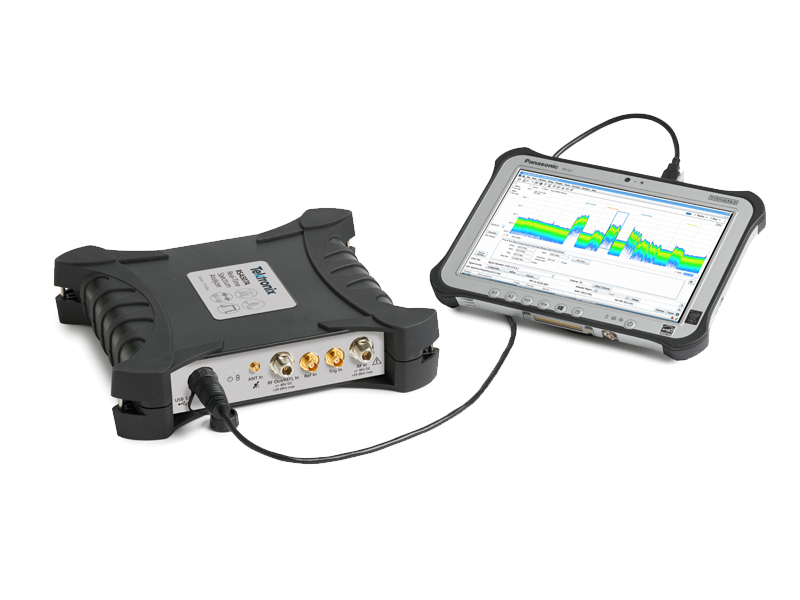

Panasonic FZ-G1-E

Controller for USB Spectrum Analyzers, Panasonic ToughPad FZ-G1.
Includes Tablet, Battery and Digitizer Pen
Price on request
On offer list

Tektronix RSA500TRANSIT

Hard-Sided Transit Case for RSA500
751.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE

SignalVu-PC Software - Vector Signal Analysis Software
(Standard Accessories for RSA300)
0.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVQPNL

EMI CISPR Quasi Peak and Average detectors
Defined per CISPR16 - in Spectrum and Spurious displays
1'643.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-EMCVUNL

Automated EMC pre-compliance and troubleshooting tests
includes EMI CISPR detectors
5'190.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SV23

WLAN 802.11a/b/g/j/p Measurement Application
2'174.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SV24

WLAN 802.11n Measurement Application (Requires Option SV23)
2'798.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SV25

WLAN 802.11ac Measurement Application (Requires Option SV24)
2'798.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SV26

APCO P25 Measurement Application
2'798.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SV27

Bluetooth Basic LE TX SIG measurements
2'174.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SV31NL

Bluetooh 5 measurements per Bluetooth SIG (requires SV27)
873.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SV28

LTE DownLink RF measurements
3'380.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SV54

Signal Survey and Classification, enables Expert
Systems Guidance to aid in Classifying Signals
5'626.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SV56

Playback of recorded files
5'626.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SVA

AM/FM/PM/Direct Audio Analysis
2'236.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SVM

General Purpose Modulation Analysis
2'943.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SVO

Flexible OFDM Analysis
2'236.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SVP

Advanced Signal Analysis (Including Pulse Measurements)
7'467.00 CHF
In cart On offer list

Tektronix SIGNALVU-PC-SVE SVT

Settling Time (Frequency and Phase) Measurement
2'236.00 CHF
In cart On offer list
