A Breakthrough in Oscilloscope Current Measurements

Make more accurate dynamic shunt-based current measurements with TICP Series current probes. High bandwidth, flexible ranges, complete galvanic isolation and extremely low noise enable you to go beyond traditional limits – ideal for low noise measurements on current shunts in floating sections of power circuits.

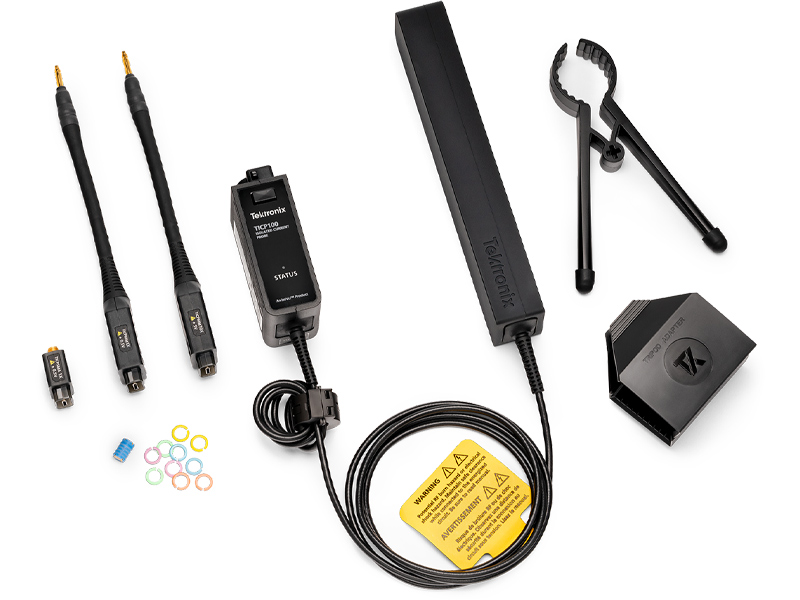

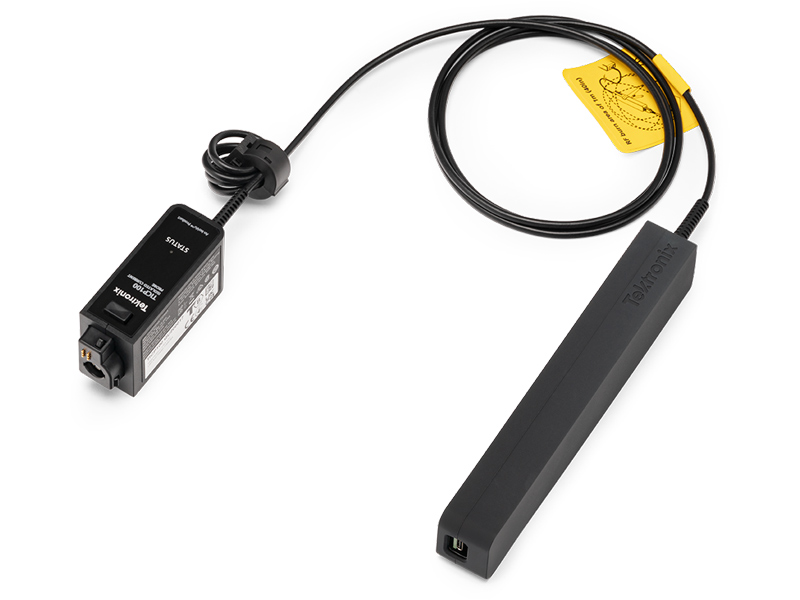

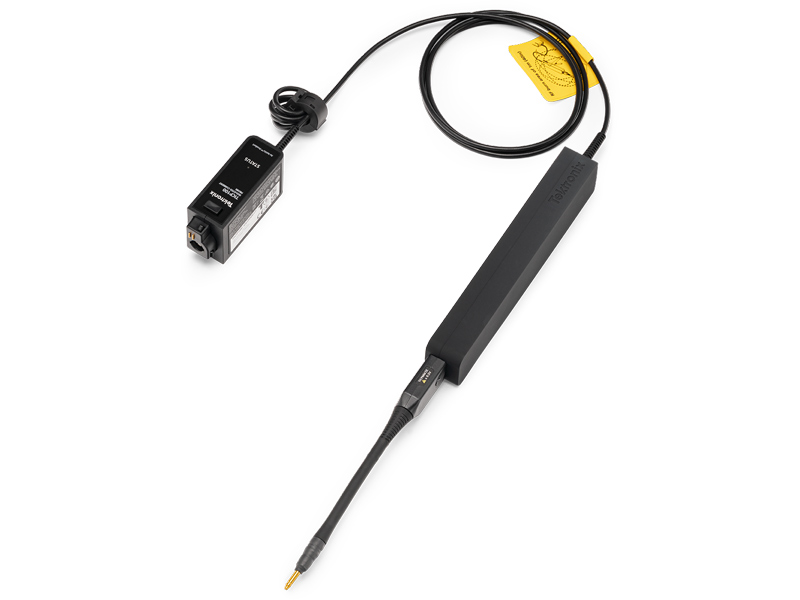

TICP current probes enable measurements from DC to hundreds of MHz when paired with high-performance shunts or CVRs.  Choose from three models to fit your application and budget.

Complete RF isolation between the probe tip and the scope eliminates ground loops and dramatically reduces common mode noise.

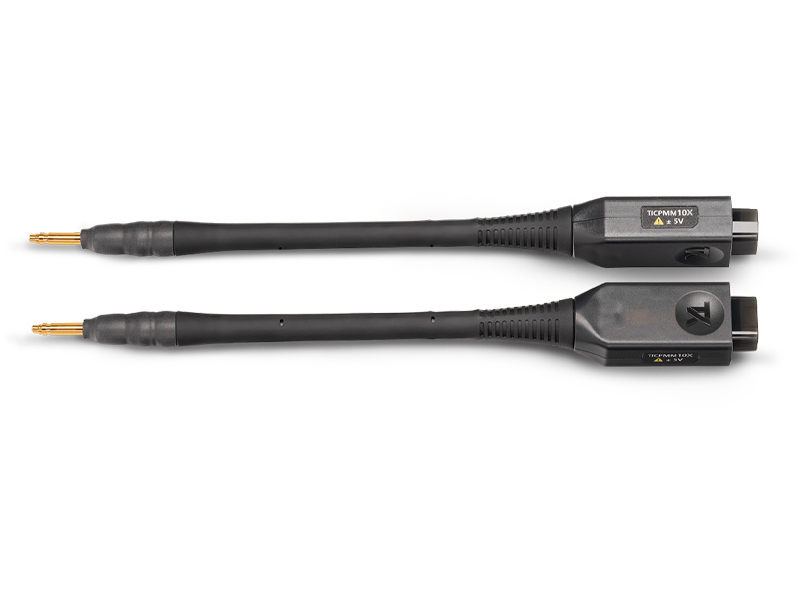

Low attenuation, 50 Ω input impedance, and shielded tips ensure a low noise contribution.

• Three bandwidths: 250 MHz, 500 MHz, 1 GHz
• Up to 90 dB CMRR @ 1 MHz
• Noise contribution < 4.7 nV/√Hz (<150 µV at 1 GHz)

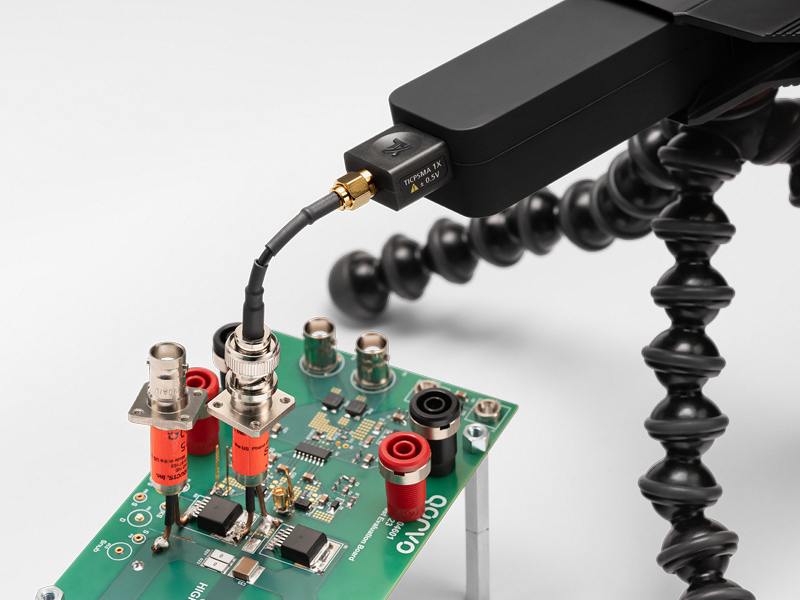

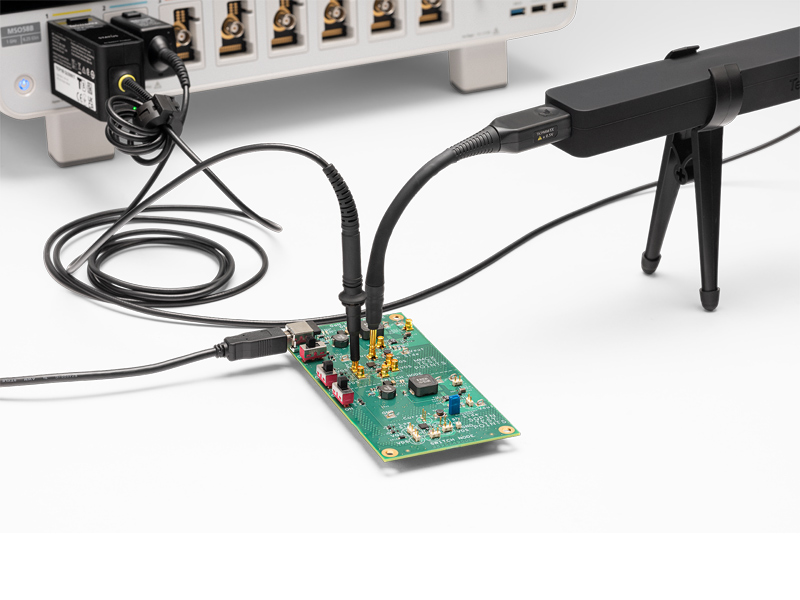

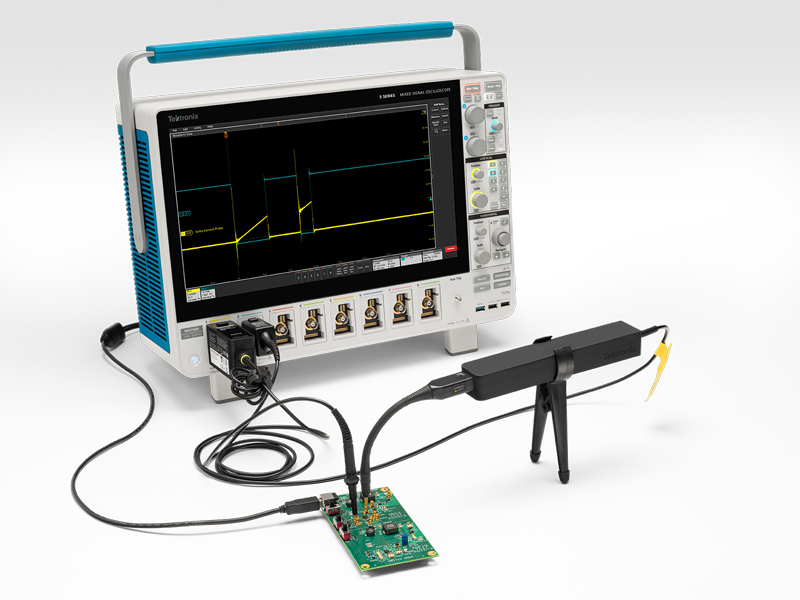

For measuring fast-changing currents in wide bandgap switching devices, shunt probes can deliver more bandwidth than clamp-on probes. IsoVu isolation eliminates ground loops, enables measurements on high-voltage circuits, and provides extremely high CMRR. This makes TICP probes ideal for current measurements on shunts and CVRs on high-side SiC and GaN switching FETs.
