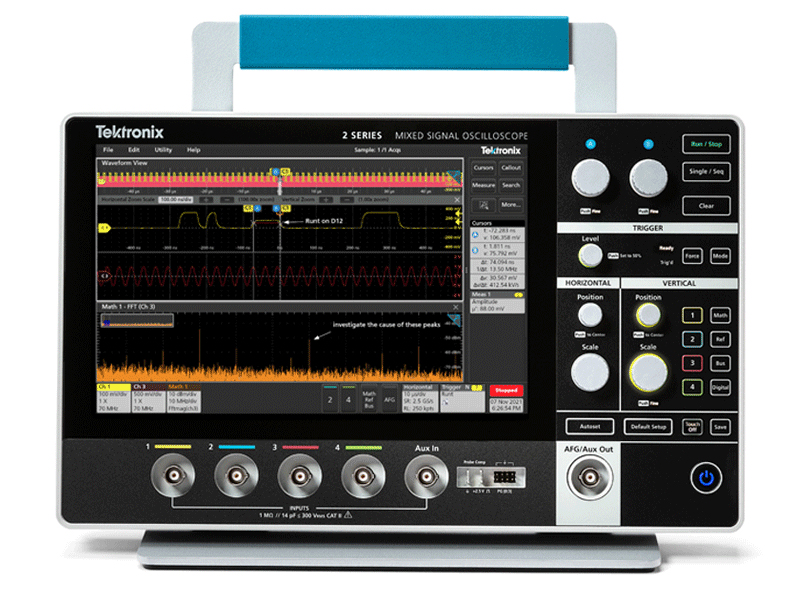

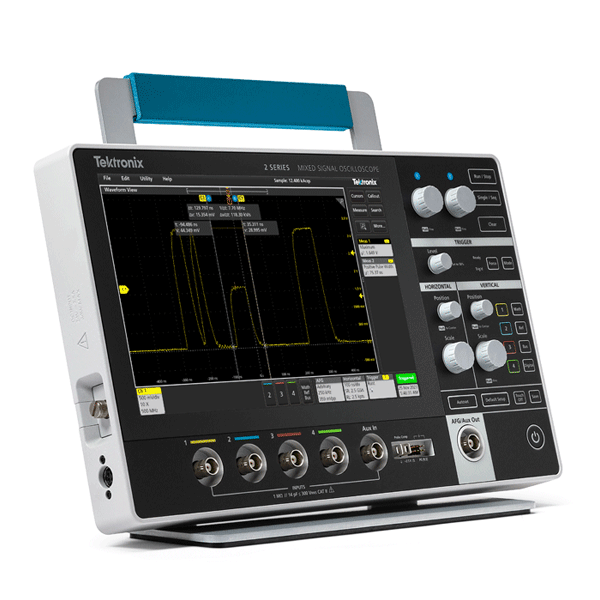

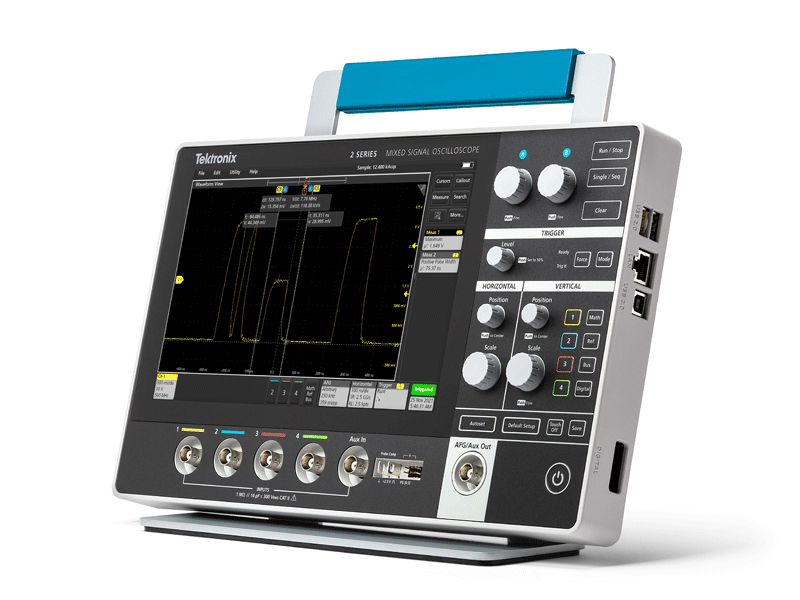

Tektronix MSO24-EDU 2-BW-70
Oscilloscope pour l'éducation
4 voies - 70 MHz
3'100.00 CHF
(3'351.10 CHF incl. TVA)
Tektronix MSO2 Education Series
The Series 2 MSO EDU has been specially developed for the classroom. The oscilloscope comes standard with full functionality and a 5 year warranty. It offers the look and feel of the next generation and the performance that is also used in practice.
The MSO2-EDU includes as standard:
- 4 x TPP0200 probes
- 16 digital channels with probe (2-MSO)
- Trigger&Decode for I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, CAN XL (2-serial)
- Frequency response analysis (FRA) Bode-Plot
- Built-in 50 MHz Arbitrary Function Generator (AFG)
- Digital Pattern Generator (DPG)
- 5-year “Total Protection” warranty
- Teaching function that switches off “Autoset” and other functions to make it easier to get started with the scope
- Remote access with TightVNC
- Free Tekscope software
caractéristiques techniques
| Bande passante | 70 MHz |
| Canal analogique | 4 |
| Longueur d'enregistrement | 10 M points |
| Taux d'échantillonnage | 1.25 - 2.5 GS/s |
| capture de formes d'onde | 100'000 wfms/s |
| options de décodage et de recherche pour | I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, CAN XL, LIN, and SENT |
| Canal numérique (MSO) | 16 Channels |
| analyseur de spectre | FFT |
| générateur fonctionnelle | 50 MHz |
| garantie | 5 an |
Fiche technique
Accessoires
Tektronix 2-Source
Tektronix 2-SERIAL
Tektronix 2-ULTIMATE
Tektronix 2-MSO
Tektronix 2-BATPK / 2-BP
Tektronix TEKBAT-01
Tektronix TEKCHG-01
Tektronix 2-RK
Tektronix 2-PC
Tektronix 2-PROTECT
Tektronix 2-CASE
Tektronix 2-HC
Tektronix 065-1090-XX
Tektronix MSO24 R3
Tektronix MSO24 R5
Tektronix MSO24 T3
Tektronix MSO24 T5
