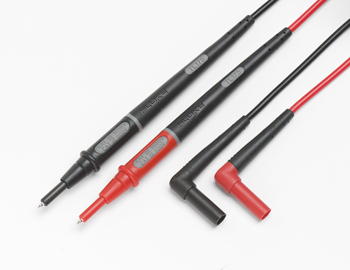

Fluke TL175 TwistGuard™ Test Leads

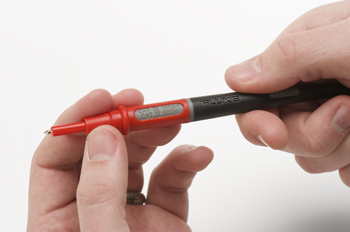

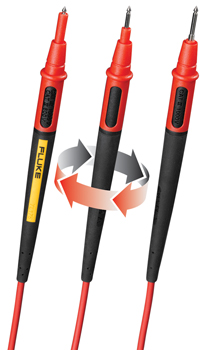

The Fluke Tl175 TwistGuard™ Test Leads are innovative test leads with adjustable length test
tips for use in changing measurement situations. By simply twisting the test lead the user
can change the exposed probe tip length from 19 mm to 4 mm.

TL175 TwistGuard™ Test Leads offer:

Patented extendable tip sheath that meet new electrical safety requirements to reduce
tip exposure while providing the versatility needed for most measurements
• New WearGuard™ lead wire wear indication. Each test lead is covered by two layers of silicone insulation; inner
contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacement
• Double insulated silicone leads. TL175 withstands high temperatures and remain fl exible in cold temperatures.

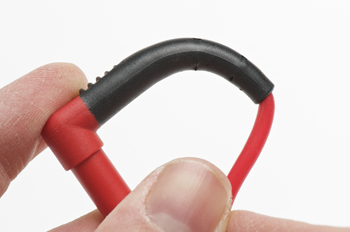

• Extra-heavy strain relief on both probe-end and plug-end, testing beyond 30,000 bends without failure.
• Universal input plugs compatible with all instruments that accept standard 4 mm shrouded banana plugs
• Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
• TL175E includes removable 4 mm lantern tips for versatility
• Probes always show correct category rating for tip being used
• Environmental ratings: -20 °C to 55 °C, altitude: 2000 m
• Conforms to latest safety standard EN61010-031: 2008
• One-year warranty
• Also available as Test Probe Set, TP175 and TP175E
