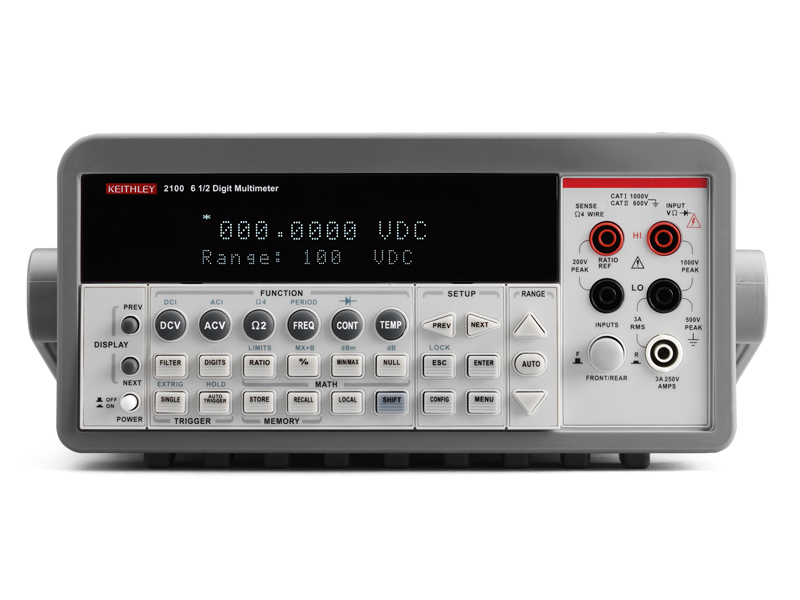

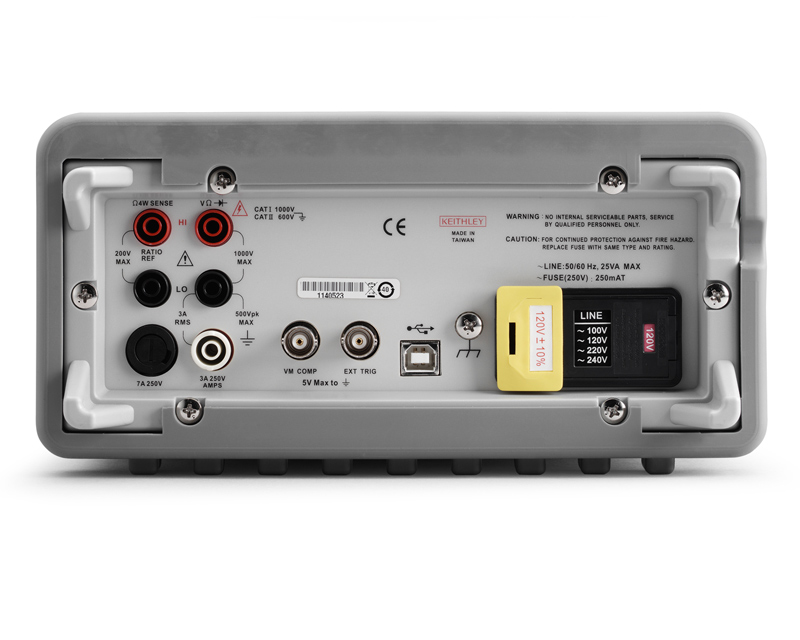

The Model 2100 USB Digital Multimeter is thenewest member of Keithley's family of high performance digital multimeters. Its high accuracy (38ppm), 6-1/2 digit resolution is ideal for critical measurements. The Model 2100 features 11 measurement functions and 8 math functions to easily accommodate the most commonly measured parameters. All accessories, such as USB cable, probes, and software, are included with the Model 2100. With its unique combination of high precision and low total cost of ownership, the Model 2100 is an unbeatable value for R&D engineers, test engineers, scientists, and students making basic precision measurements on the bench and in system applications.
caractéristiques techniques
Tension CA/CC | 750V/1000V |
Courant CA/CC | 3A (10μA/10nA) |
Résistance | 100μΩ to 100MΩ |
Capacité | - |
Gamme de fréquence | 3Hz-300kHz |
Bande passante (U/I) | 3Hz-300kHz/3Hz-5kHz |
Ecran | Matriciel à double écran VFD |
Standard de sécurité | Conforms to European Untion Directive |
Dimensions | 112x256x375mm |
Garantie |
