Fluke TC01A 9HZ
Caméra infrarouge iSee 9 Hz
3.81 mRad, 256x192 (49'152 Pixel), -10 °C bis +550 °C, 50 mK, 0.022 Kg
Neuf
457.00 CHF
(494.00 CHF incl. TVA)

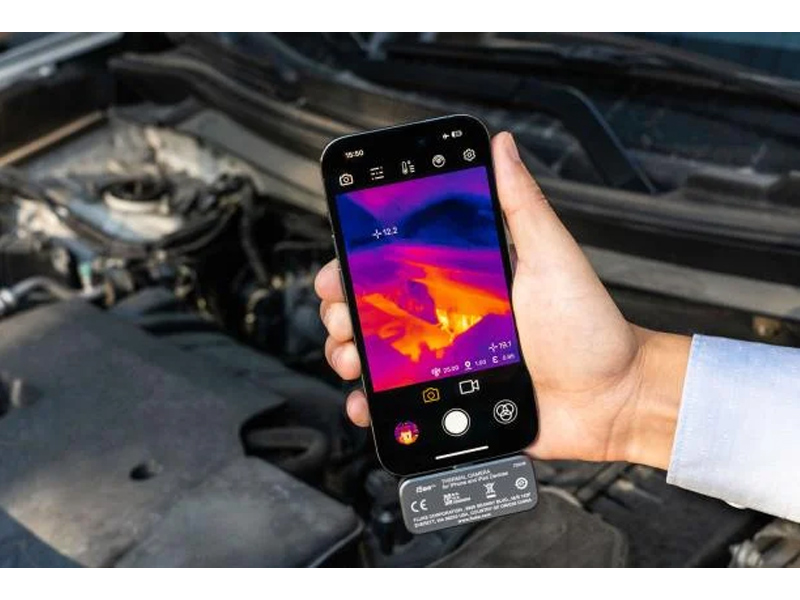

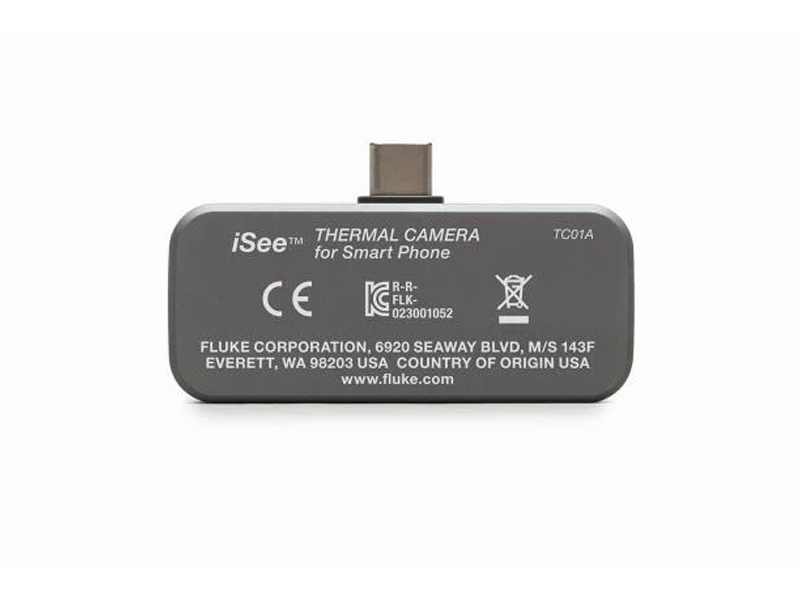

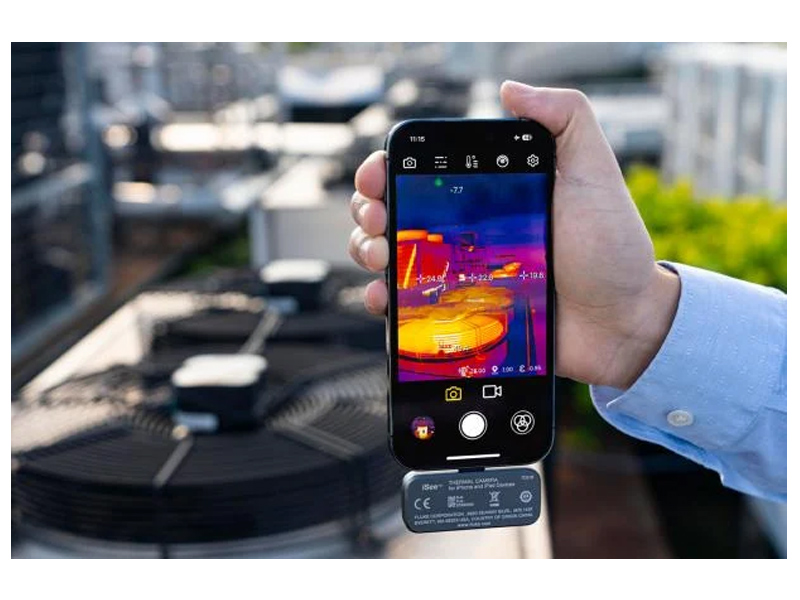

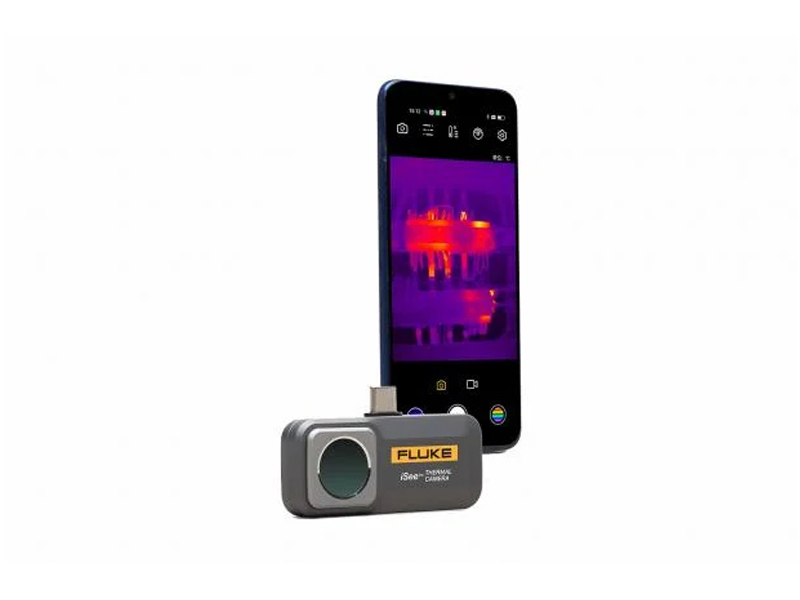

Fluke iSee™ Mobile Thermal Camera – TC01A
for Android OS
Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 9 Hz frame rate. Additionally, our software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.
Detailed image quality comparable to professional thermal imagers
- 256 x 192 pixels, detailed image quality
- -10 to 550 °C (14 to 1022 °F) range, covering wide applications
- 50 mk (0.05 °C) thermal sensitivity for fine screening
- ± 2% or ± 2 °C (3.6 °F) accuracy, reliable and stable
- 25 Hz frame rate, smooth video without lag
- More than 10 standard and custom color palettes to achieve a variety of personalized images
caractéristiques techniques
| Domain d'utilisation | à usage industrielle et commerciale |
| Type de détecteur | 256 x 192 |
| Nombre total de pixels | 49'152 |
| Distance de mise au point minimale | 25 cm |
| Gamme de mesure de la température | -10, -20 °C to + 550 °C |
| Sensibilité thermique (NETD) | 50 mK |
| Précision de la mesure de la température | ± 2 °C or 2 % |
| Fréquence de capture d'images | 9 Hz / 25 Hz |
| Ecran tactile intelligent (capacitif) | |
| Champ de visée | 56° x 42° |
| Connectivité | USB |
| Logiciel | |
| Batteries | |
| Niveau de protection | |
| Poids (batterie comprise) | 0.022 kg |
| Dimensions (H x l x P) | 60 x 33.5 x 11.2 mm |
| Garantie | 2 ans |
