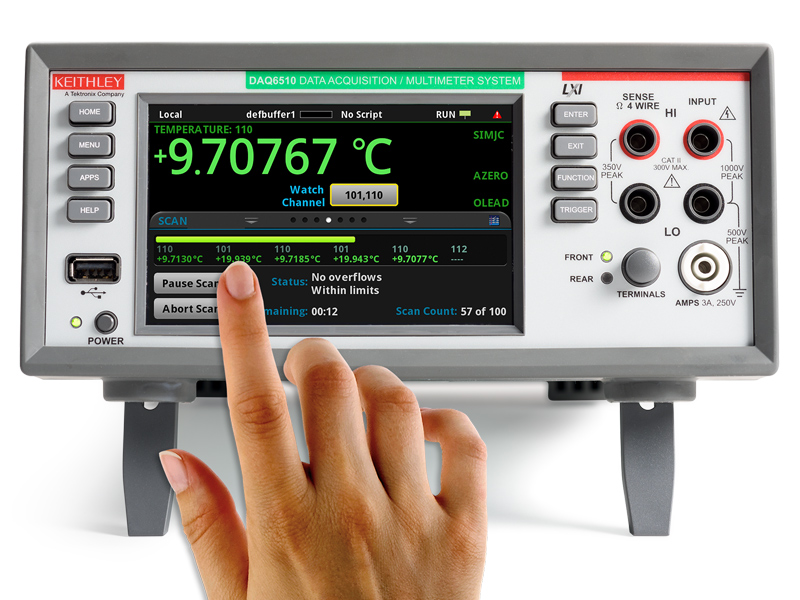

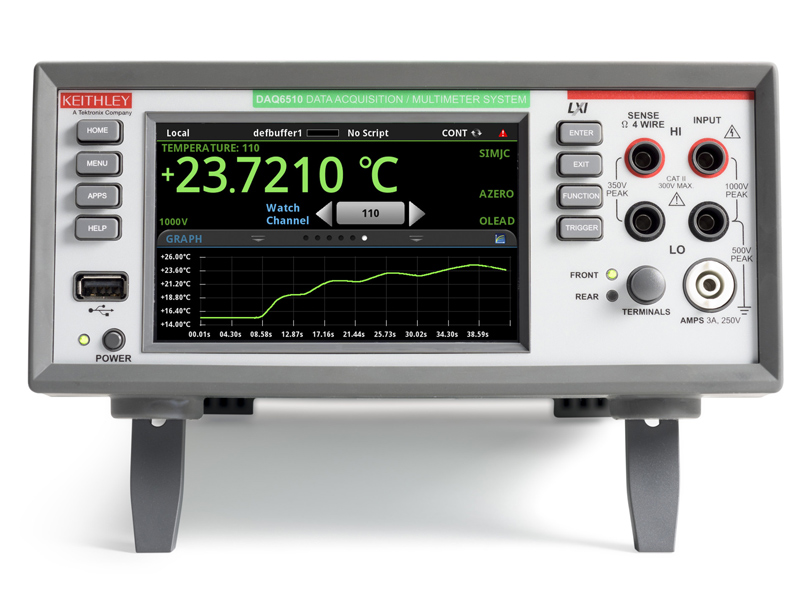

Creating a new level of simplicity, the DAQ6510 has a touchscreen user interface that enables faster setup time, real time monitoring of test status, and detailed data analysis on the instrument.
The DAQ6510 is made to measure with 6½-digit resolution and 15 built-in measurement functions. Make low-current, low-resistance, and temperature measurements, and see transient signals with the built-in digitizer.

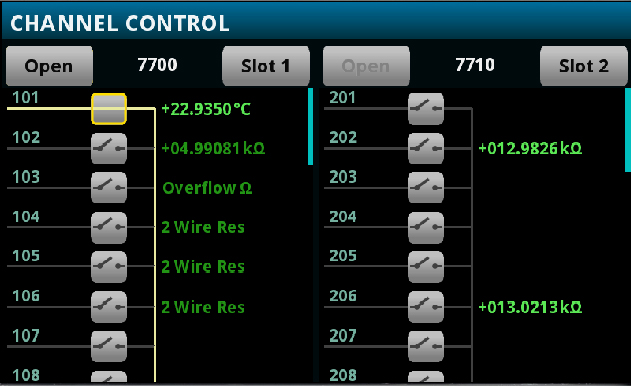

Set up and run a test simply and quickly without having to write a test program. The DAQ6510 Data Acquisition and Logging Multimeter System's intuitive touchscreen provides simple configuration with visual and intuitive test setups, real-time visualizations of scan status for catching problems early to avoid lost test time, and easy analysis of test data.
caractéristiques techniques
Tension CA/CC | 750V/1010V |
Courant CA/CC | 3A (100pA/10pA) |
Résistance | 1μΩ to 120MΩ |
Capacité | 0.1 pF - 120 μF |
Gamme de fréquence | 3Hz-300kHz |
Bande passante (U/I) | 3Hz-300kHz/3Hz-10kHz |
Ecran | Five-inch Touchscreen |
Standard de sécurité | Conforms to European Untion Low Voltage Directive |
Dimensions | 213,8 x 88,4 x 356,6mm |
Garantie | 3 ans |
Fiche technique
Accessoires

Keithley KICKSTARTFL-SUITE

Keithley KICKSTARTFL-DL

Keithley KICKSTARTFL-DMM

Keithley DAQ6510-5Y-EW

Keithley KTTI-RS232

Keithley KTTI-GPIB

Keithley KTTI-TSP
Keithley FU-99-1

Keithley 7700

Keithley 7701

Keithley 7702

Keithley 7703

Keithley 7705

Keithley 7706

Keithley 7707

Keithley 7708

Keithley 7709

Keithley 7710

Keithley 7711
