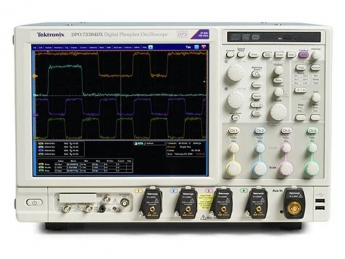

Tektronix DPO71604DX
Digital Phosphor Oscilloscope
4 Channels - 16 GHz
Price on request
From the Leader in Performance Mixed Signal Oscilloscopes
The MSO/DPO70000 Series oscilloscope delivers exceptional signal acquisition performance and analysis capability. Discover your real signals and capture more signal details with the industry's highest waveform capture capability. Automate setup, acquisition and analysis of high-speed serial data signals with a toolset engineered to deliver faster design and compliance testing.
Technical Data
| Bandwidth | 16 GHz |
| Channels | 4 |
| Memory | 31.25 M - 1 G points |
| Samplingrate | 50-100 GS/s |
| Acquisitionrate | 300'000 wfms/s |
| Protocol Analyzer | PCI Express, 8b/10b-kodierte serielle Daten, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B sowie MIPI D-PHY und M-PHY |
| Logic Analyzer | - |
| Spectrum Analyzer | FFT, SignalVu (optional) |
| Function Generator | - |
| Warranty | 1 year |
