TekScope brings the power of oscilloscope analysis environment to the PC. Users have the flexibility to perform analysis tasks including serial decode, power analysis, as well as timing, eye, and jitter analysis outside the lab. You can continue your session from your oscilloscope at any place and share the results. Reduces efforts to see screenshots when you need to dive deeper or while sharing. Reload the session on your 4/5/6 oscilloscope, if you want to redo the measurement.

Waveform data and setup in sessions from Tektronix 4/5/6 Series MSO, 5LP/6LPD Series MSO, and waveform data from 3 Series MDO, DPO/MSO/MDO3000, DPO/MSO/MDO4000, DPO7000C, or DPO/MSO70000C/D/DX/SX Series Oscilloscopes can quickly be shared between team members and remote sites, resulting in improved efficiency.

• Collaborate

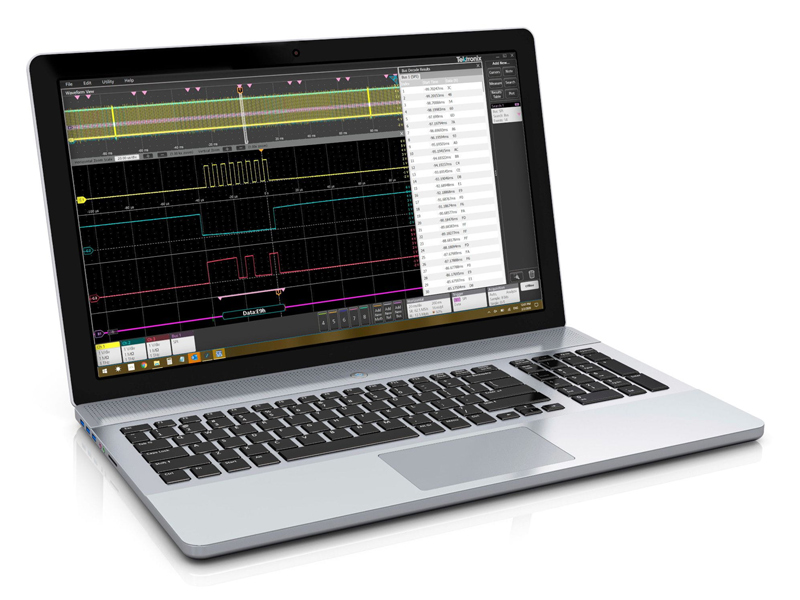

  • TekScope runs on your PC - Enables better time and resource utilization; view, measure, and analyze data captured in your lab, independent of the oscilloscope hardware.
  • Compatible with most common save/recall waveform files - common analysis tools independent of the hardware acquisition, including:
    • .tss (4/5/6 Series session files – setups and waveforms)
    • .wfm, .isf (Tektronix)
    • .bin (Keysight)
    • .trc (Lecroy)
    • .tr0 (Spice)
    • .csv (general purpose)

• Analyze
  • Cursors: Waveform, V Bars, H Bars, and V&H Bars
  • Measurements: 34 standard
  • Plots: Time Trend, Histogram, Spectrum, XY, and XYZ
  • Math: Basic waveform arithmetic, FFT, and advanced equation editor
  • Search: Quickly find events in your data based on specified criteria
  • Clocked/unclocked Parallel Bus Decode
  • Optional Analysis Packages:

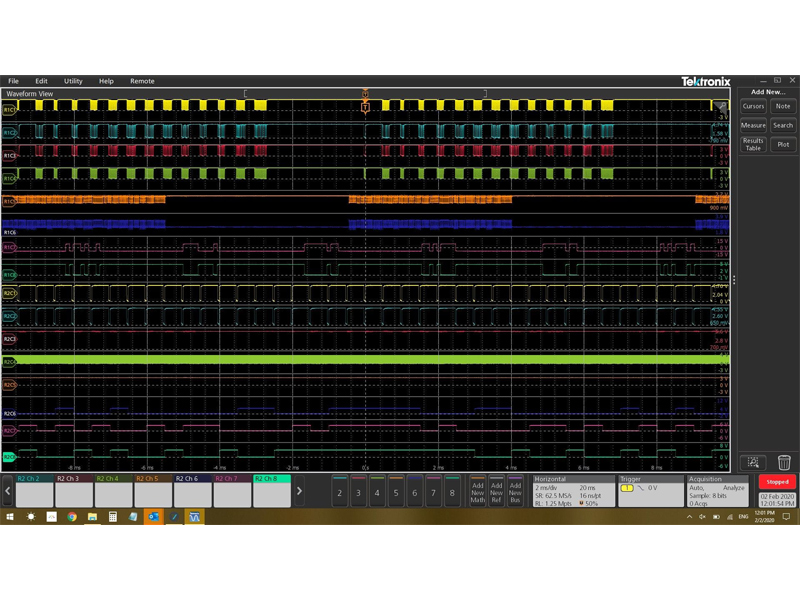

    • Multi-Scope Analysis: Remotely connect to multiple oscilloscopes to view and analyze real-time data from many channels simultaneously. Connect up to four oscilloscopes and 32 channels.
    • Low Speed Protocol Decode: Protocol Decode and Search Analysis of all common Embedded, Automotive, Aerospace, Consumer and Audio protocols.

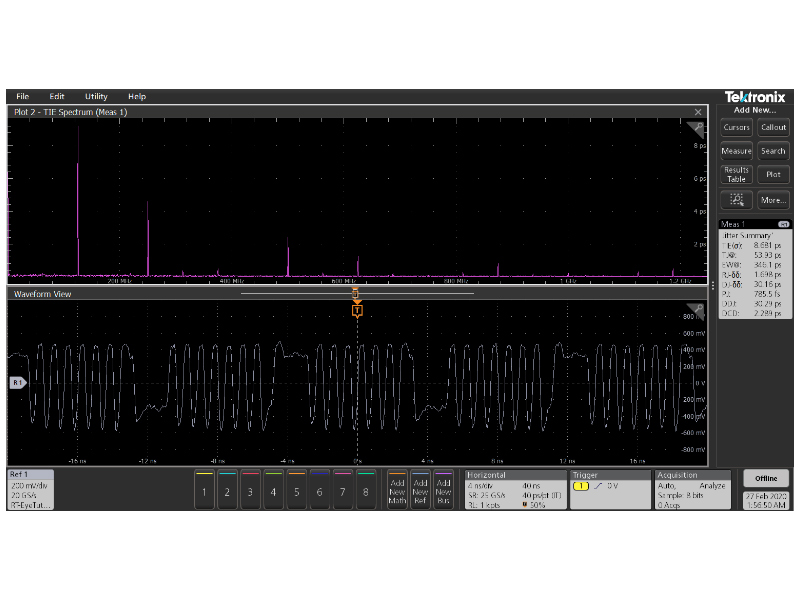

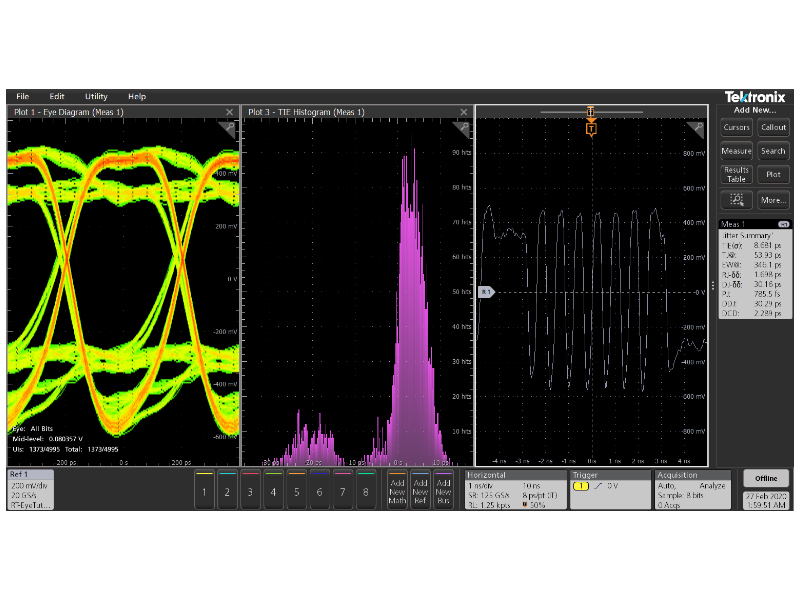

    • Advanced Jitter Measurements and Eye Analysis
    • Power Electronic Analysis:
      • Advanced Power Analysis
      • Magnetics Analysis
      • Inverter Motor Drive Analysis
    • Power Integrity Analysis:
      • Digital Power Management
      • SPMI Serial Decode and Search
    • SpectrumView Analysis: Perform time and frequency domains simultaneously.
    • Remote Analysis for Bench Oscilloscopes: Use TekScope to remotely pull data from your bench oscilloscope and perform common serial decoding analysis.

Register and Download here: https://scope.tekcloud.com/#/
